Curve and Arcum Event Tent

Curve and Arcum tent is a unique tent shape, wildly used for event in China these years.
ADVANTAGE:
1.High space utilization: Arcum tent for event no need to use load-bearing beams inside, so the interior space can be fully utilized.
2.Many styles of decoration: glass door wall, ABS hard wall and transparent window tarpaulin can be used around. Curtains and top curtains can be used inside with various colors. Arcum tent is very beautiful than other shape tent after decoration.
3.Do customized: We have our own factory and engineer, so we can do customized your any inquire.

  • Gaoshan Tent Manufacture
  • Shenyang
  • 25 days
  • 100,000 m²/month
  • Information
  • Video
  • Download


Curve and Arcum Tent



Product Description

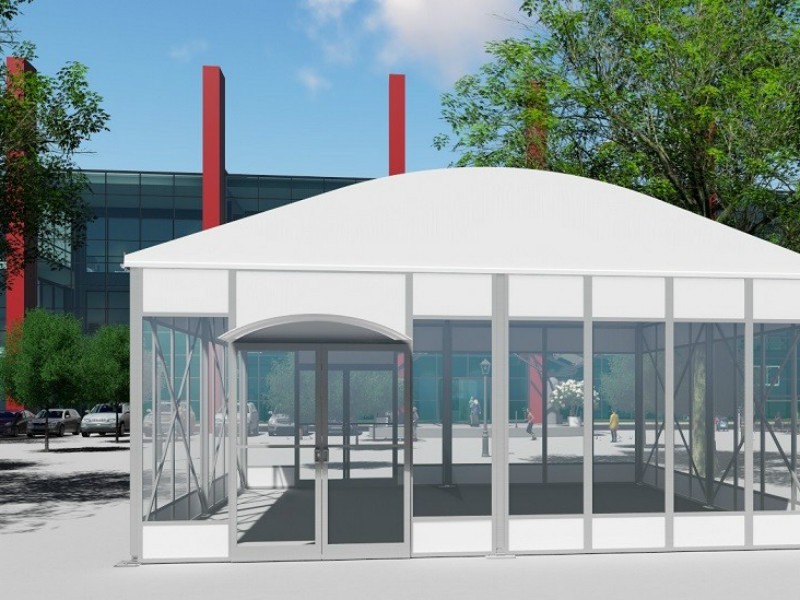

Curve and Arcum tent is a typical aluminum modular tent, no limits to the length, modular 5 meters bay distance. Curve and Arcum tent is easy to set up and disassemble, also very beautiful than other shape tent in events.

Curved and arcum tent looks very special in appearance. It is like a rainbow house with beautiful arcs and strong interchangeability of parts. It can flexibly convert the curved roof into a human character. The roof can also be designed with extended floating eaves. Suitable for users outdoor exhibition auto show sports venues and other events celebration!


Product Specification

Main Frame

Structure

Tent Span: 15m, 20m, 25m, 30m, 35m, 40m, customized size

Size: 84mm x 48mm x 2.7mm, 100mm x 48mm x 2.7mm, 150mm x 120mm x 3mm, 203mm x 112mm x 4.5mm

Material: Hard Pressed Extruded Aluminum Alloy 6061-T6

Roof material

Density: 650g/sqm, 750g/sqm, 850g/sqm

Material: Both sides lacquered PVC coated fabric

Features: UV resistant, waterproof, fire retardant B1

Sidewall

PVC White or Clear Wall, Glass Wall, ABS Wall

Wind Load

Usual 80km/h to 120km/h

Snow Load

10cm Thick Floating Snow

Temperature Index

-30 Degree Celsius ~ +70 Degree Celsius

Life Time

Frame more than 15 years. PVC fabric 5-10 years.

Certification

SGS, ISO 9001:2015, IAF, NAC

Optional Accessories

Colored PVC Roof and Sidewall, Clear PVC Window Sidewalls, Glass Windows, Glass Door Units, Flooring System, Fixed Way, Rain Gutter between two tents, etc.

The curved roof tent is a unique tent shape. He uses the design elements of traditional Chinese architecture to pre-bend the top inclined beam to achieve the curved effect on the basis of herringbone. Due to the curved design at the top, the curved roof tent is durable and wind resistant.


3D drawing

Arcum EventTent


80% customers also check below products:(please click the picture to know more)

 Outdoor Event Arcum Tent         Curve and Arcum Tent

These two products are dome tents and hanger tents, which is also popular choice for party events and exhibition activities. Just like multi-side polygon tents, they all have unique shapes and large space.


Company Introduction

Arcum EventTent

Gaoshan Tent Manufacture (Shenyang) CO., LTD established in 2003, which is main engaging in the design, manufacture, sales and rental of high-quality aluminum structure tent systems. In the north of China, we are one of the largest tents and air dome production bases. As a 17 years tents manufacturer, we have a professional design team. Now, we are the only company in China that has developed the marquee tent with 70m span width.


Our company has an area of production base 60,000㎡, over 200 employees, 100,000㎡monthly production capacity and 250,000㎡ inventory. Moreover, Gaoshan company has imported a lot of advanced equipment from Germany and other countries, such as fabric washing machine, high frequency cutting machines, color printers and so on. We sincerely invite you to visit our company.




Certifications (click the picture to know more)

Outdoor Event Arcum Tent

Gaoshan had passed ISO 9001-2008 standard quality management system certification. And we obtained the national AAA level credit enterprise certification. Our factory equipment comes from domestic and foreign manufacturers. Because of the reliable product quality and advanced technology, we have accumulated many customers and satisfied them in the past 17 years. The warranty period is within 1 year after the customer receive the goods. Any question about service, contact us.


Package and Delivery

Curve and Arcum Tent

1.Aluminum Ally frame packed in Bubble paper

2. Hardware/accessories packed in solid carton box;

3. Roof and sidewall in professional PVC carry bag;

4. Customized packing


Exhibitions Show

Arcum EventTent

Gaoshan is committed to expanding overseas markets. In the past year, Gaoshan has participated in 10 international exhibitions covering nearly 100 countries on six continents. It is expected to cooperate with customers from all over the world.
